Component Embeds

When you paste a link to your website into Discord, it turns into a link preview. A component embed replaces that preview with a layout you control, built from the same components apps use in messages. You get markdown, images, galleries, an accent-colored container, and link buttons.

Link previews are subject to change.

Prerequisites

An HTML page served over HTTPS.
The tag is present in the server-rendered markup. Discord does not execute code so a tag injected by a client-side script is never seen.
Discord’s crawler can reach the page. Pages are fetched with the user agent Mozilla/5.0 (compatible; Discordbot/2.0; +https://discordapp.com), and linked JSON with Discordbot/2.0.
The whole fetch, including every image in the payload, must finish within 10 seconds.
Open Graph tags are present, so a standard preview is available when a component embed can’t be shown. See Link Previews for the tags Discord reads.

Bot challenges from CDN and WAF products commonly block Discordbot. If previews never appear, confirm that a request with a Discordbot user agent gets a 200 for the page and for each image, with no JavaScript challenge in front of it.

How It Works

A user posts a link to your page in a Discord message.
Discord fetches that URL with its crawler and reads the HTML.
Discord looks for a component-embed tag, parses the JSON, and fetches metadata for each image.
If the payload is valid, Discord renders it in place of the standard preview.

Adding the Payload

There are two ways to expose the JSON. You can include the JSON directly in the page with a <script> element, or as an external file with a <link> element.

Option 1: Inline Script

Put a <script id="discord:component-embed" type="application/json"> in the page Discord fetches, inside the <head> element.

<script id="discord:component-embed" type="application/json">
{
  "component": {
    "type": 17,
    "accent_color": 5793266,
    "components": [
      {
        "type": 10,
        "content": "# Patch Notes\n- Fixed a bug where certain treasure chests wouldn't open properly\n- Improved server stability during peak hours\n- Added a new type of gravity that will randomly apply when the moon is full\n- Every third thursday the furniture will scream its darkest secrets to nearby npcs"
      }
    ]
  }
}
</script>

The type attribute must be exactly application/json. The script body must be the JSON object itself, not assigned to a variable or wrapped in a function call.

Option 2: Linked JSON

Serve the JSON from a URL on the same site and point at it with a <link rel="discord:component-embed" type="application/json"> element.

<link
  rel="discord:component-embed"
  type="application/json"
  href="https://watchanimeattheoffice.com/embeds/article.json"
>

Rules for the href:

Rule	Detail
Absolute URL	The `href` must be an absolute `https://` URL.
Same site	The host must be the page’s host, a subdomain of it, or its parent domain. `cdn.example.com` is valid for a page on `example.com` and the reverse is also valid.
Response body	The JSON object described in Payload Structure, the same shape as the inline script.
Size	3,000-byte limit, measured on the raw response bytes.

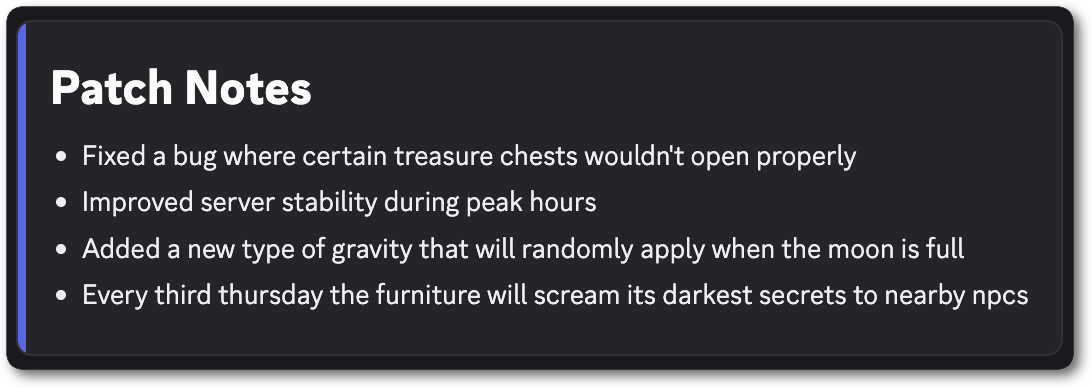

An embed link preview showing the examples above

Payload Structure

The document, inline or linked, must be a JSON object with a single, parent Container component which can then hold other components.

{
  "component": {
    "type": 17,
    "components": [
      {
        "type": 10,
        "content": "# Patch Notes\n- Fixed a bug where certain treasure chests wouldn't open properly\n- Improved server stability during peak hours\n- Added a new type of gravity that will randomly apply when the moon is full\n- Every third thursday the furniture will scream its darkest secrets to nearby npcs"
      }
    ]
  }
}

Field	Type
component	Container

Compatible Components

A component embed is a read-only subset of the components used in messages. Any component type not in this table invalidates the payload. You can use up to 40 components in a component embed.

Type	Component
1	Action Row
2	Button *
9	Section
10	Text Display **
11	Thumbnail ***
12	Media Gallery ***
14	Separator
17	Container

* A button must use the link style (style of 5) and may contain only type, url, style, label, emoji, and disabled, with a label, an emoji, or both. Any other key, including id, custom_id, and sku_id, invalidates the entire payload. ** Text Display content is Discord markdown including headings, bold, italics, strikethrough, spoilers, lists, links, inline code and code blocks, and emoji. See Message Formatting. *** Thumbnails and gallery items take an unfurled media item with only url set. Discord fills in the rest after it fetches the file. Thumbnails accept images only. Media Gallery items accept images and video. See Media.

Media

Thumbnails and gallery items take an unfurled media item. Discord fills in the width, height, content type, placeholder, and proxy URL after it fetches the asset. A video in a Media Gallery shows a poster frame with play controls and does not autoplay.

{ "url": "https://watchanimeattheoffice.com/images/hero.webp" }

Requirement	Detail
Scheme	`http` or `https`.
Length	Max 2,048 characters.
Format	Images in PNG, GIF, JPEG, WebP, or AVIF. Media Gallery items also accept MP4, MOV, and WebM video. Thumbnails are image only.
Public access	Discord’s crawler must be able to fetch the URL without cookies or a login.

Full Example

A game release preview. A headline with a button beside it, a gallery, a caption, a row of links, and a minor character spoiler with hidden avatar.

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <title>New version out!</title>

    <meta property="og:title" content="New version out!" />
    <meta property="og:description" content="The dungeon is deceptively tougher." />
    <meta property="og:image" content="https://watchanimeattheoffice.com/photos/hero.jpg" />
    <meta property="og:url" content="https://watchanimeattheoffice.com/posts/version2" />

    <script id="discord:component-embed" type="application/json">
    {
      "component": {
        "type": 17,
        "spoiler": false,
        "accent_color": 1752220,
        "components": [
          {
            "type": 9,
            "components": [
              {
                "type": 10,
                "content": "# **[New version out!](https://watchanimeattheoffice.com/posts/version2)**\nThe dungeon is deceptively tougher."
              }
            ],
            "accessory": {
              "type": 2,
              "style": 5,
              "url": "https://watchanimeattheoffice.com/posts/version2",
              "label": "Open"
            }
          },
          {
            "type": 12,
            "items": [
              { "media": { "url": "https://watchanimeattheoffice.com/photos/1.png" }, "description": "The main character entering the dungeon" },
              { "media": { "url": "https://watchanimeattheoffice.com/photos/2.png" } },
              { "media": { "url": "https://watchanimeattheoffice.com/photos/3.png" } }
            ]
          },
          {
            "type": 10,
            "content": "*Screenshots of new content*"
          },
          {
            "type": 14,
            "spacing": 1
          },
          {
            "type": 1,
            "components": [
              { "type": 2, "style": 5, "url": "https://watchanimeattheoffice.com/store", "label": "Store" },
              { "type": 2, "style": 5, "url": "https://watchanimeattheoffice.com/community", "label": "Community" },
              { "type": 2, "style": 5, "url": "https://watchanimeattheoffice.com/patch-notes", "label": "Patch Notes" }
            ]
          },
          { "type": 14 },
          {
            "type": 9,
            "components": [
              {
                "type": 10,
                "content": "## **[??????](https://watchanimeattheoffice.com/me)**\nWho could this be?"
              }
            ],
            "accessory": {
              "type": 11,
              "media": { "url": "https://watchanimeattheoffice.com/new-boss.png" },
              "spoiler": true
            }
          }
        ]
      }
    }
    </script>
  </head>
  <body>
    <h1>New version out!</h1>
  </body>
</html>

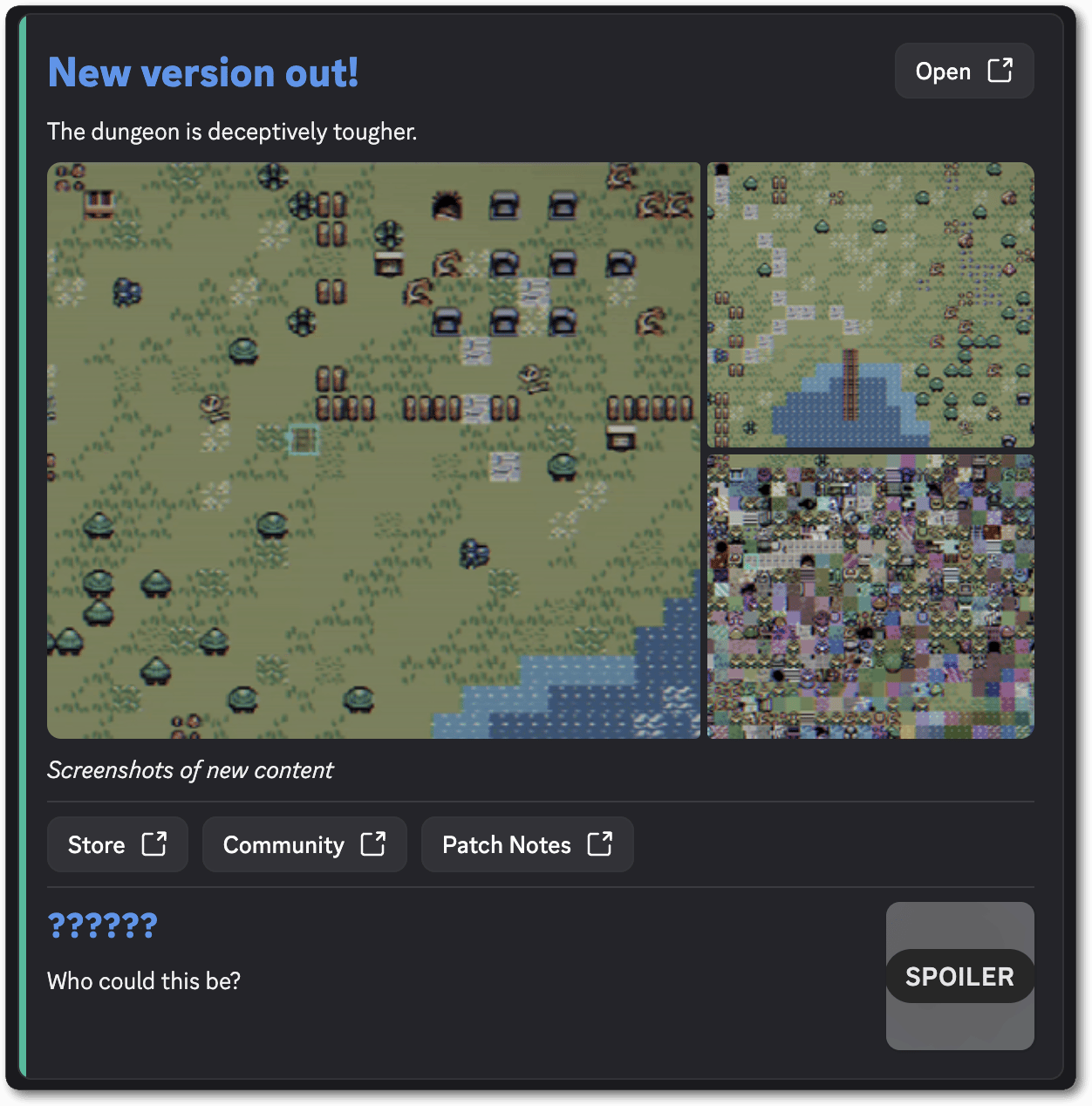

An embed link preview showing the example above

Open Graph Fallback

Ship these tags alongside the component-embed payload. They are what Discord shows whenever a component embed can’t be used.

<meta property="og:title" content="New version out!" />
<meta property="og:description" content="The dungeon is deceptively tougher" />
<meta property="og:image" content="https://watchanimeattheoffice.com/photos/hero.png" />
<meta property="og:url" content="https://watchanimeattheoffice.com/posts/version2" />
<meta property="og:type" content="article" />
<meta name="twitter:card" content="summary_large_image" />

Link Previews covers these tags and the rest of the metadata Discord reads.
